HF - T2FD Antenna

________________________________________________________


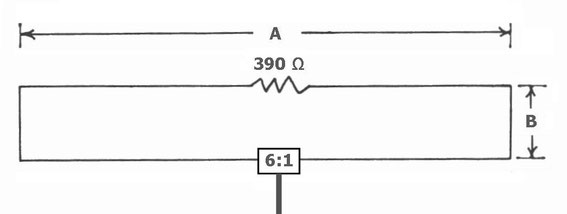

La T2FD (Terminated Two Wire Folded Dipole Antenna), è un dipolo ripiegato terminato che presenta un carico essenzialmente resistivo e costante su tutto il range operativo.


Questa caratteristica aperiodica permette alla T2FD di operare come antenna multi-banda.






________________________________________________________________________________________________________________



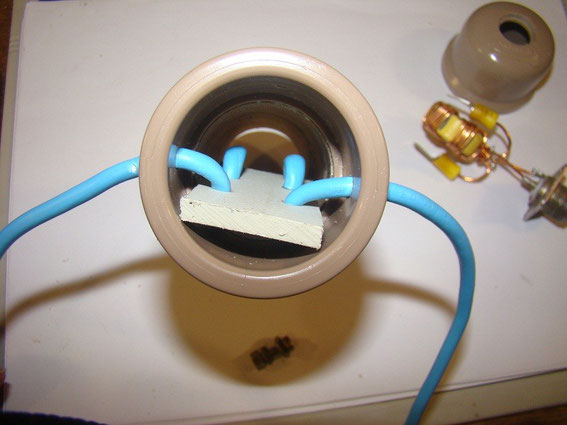

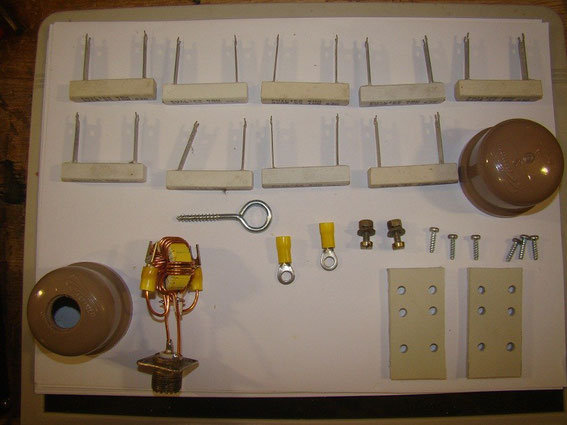

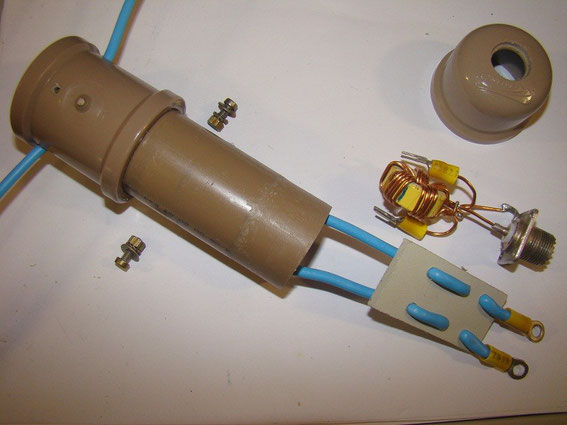

CONSTRUCTION OF A T2-FD 890 terminated


(resistors and balun are the same for HFS-30 antenna)

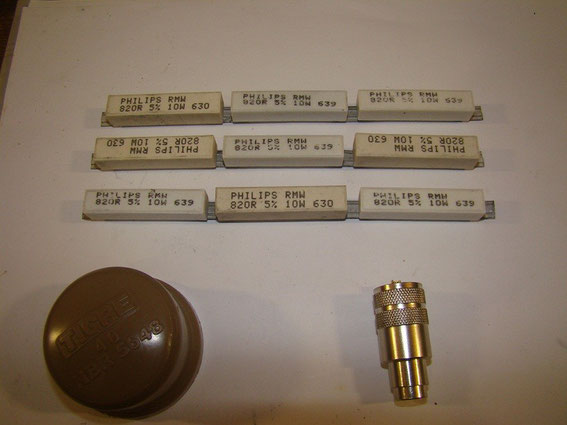

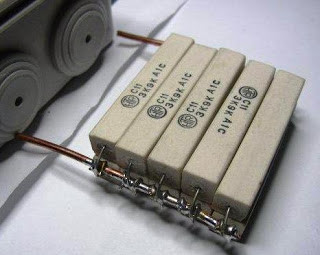

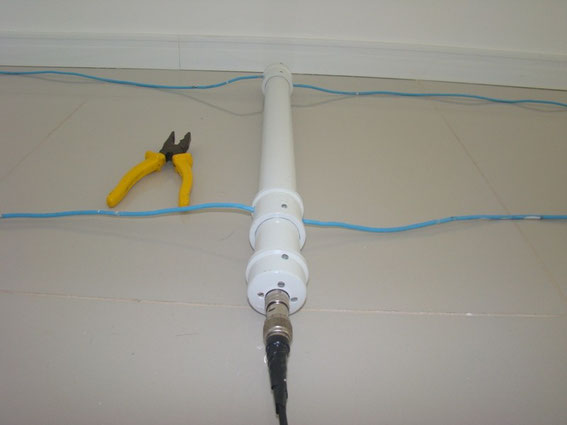

820 OHMS / 90 W (9 RESISTORS OF 820 OHMS/10W EACH)



________________________________________________________



http://www.qrz.com/db/PS7DD/ht%3C/div%3E%3Cdiv%20class=

________________________________________________________

________________________________________________________




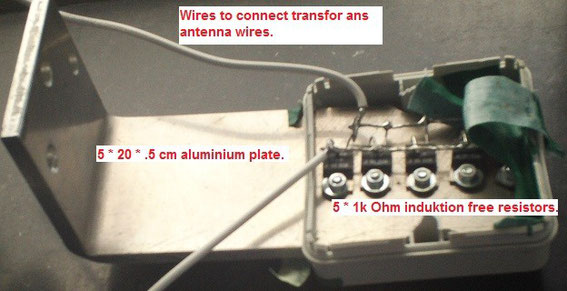

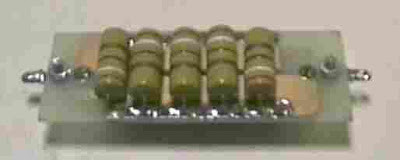

ALTRE RESISTENZE PARALLELO


________________________________________________________


http://www.qsl.net/oz1dgq/home-filer/self%20made%20antenna%20matching.htm#af2

________________________________________________________

________________________________________________________




________________________________________________________






________________________________________________________

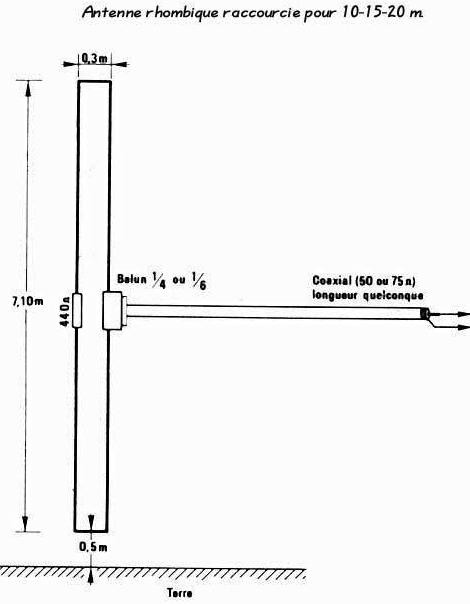

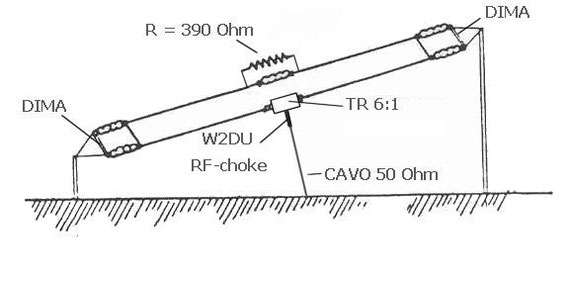

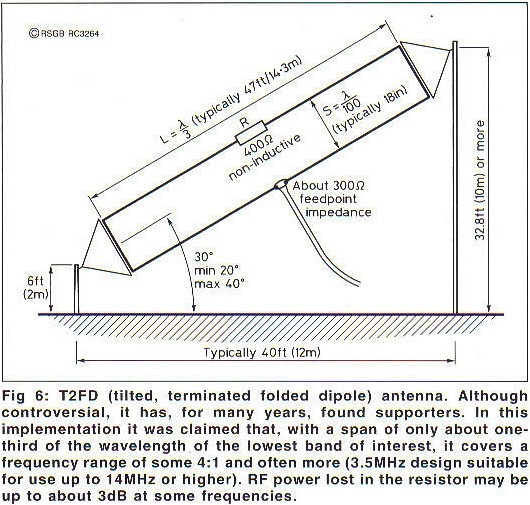

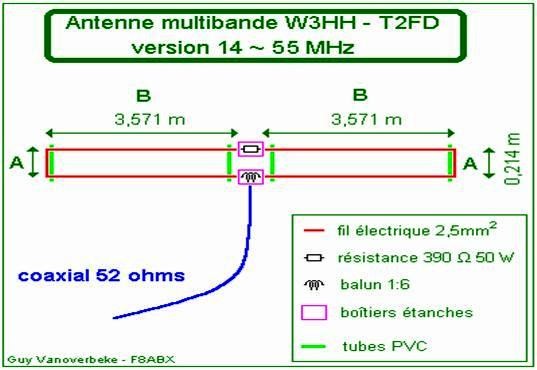

http://filipect1ddw.blogspot.it/2012/04/antena-t2fd-w3hh-multibanda-aperiodica.html
